Wireless Microphone G-MARK X220U UHF Recording Karaoke Handheld With Rechargeable Lithium Battery Receiver
Description
- Brand Name: G-MARK
- Transducer: Dynamic Microphone
- Set Type: Matched Pair
- Style: Handheld Microphone
- Use: Karaoke Microphone
- Origin: CN(Origin)
- Package: Yes
- Model Number: x220u
- Polar Patterns: Cardioid
- Certification: CE
- Certification: RoHS
- Diaphragm: Small
- Communication: wireless
- Microphone Type: Dynamic
- Microphones: 2
- Material: Plastic
- Requency Response: 50Hz – 18KHz
- Dynamic Range: 96dB

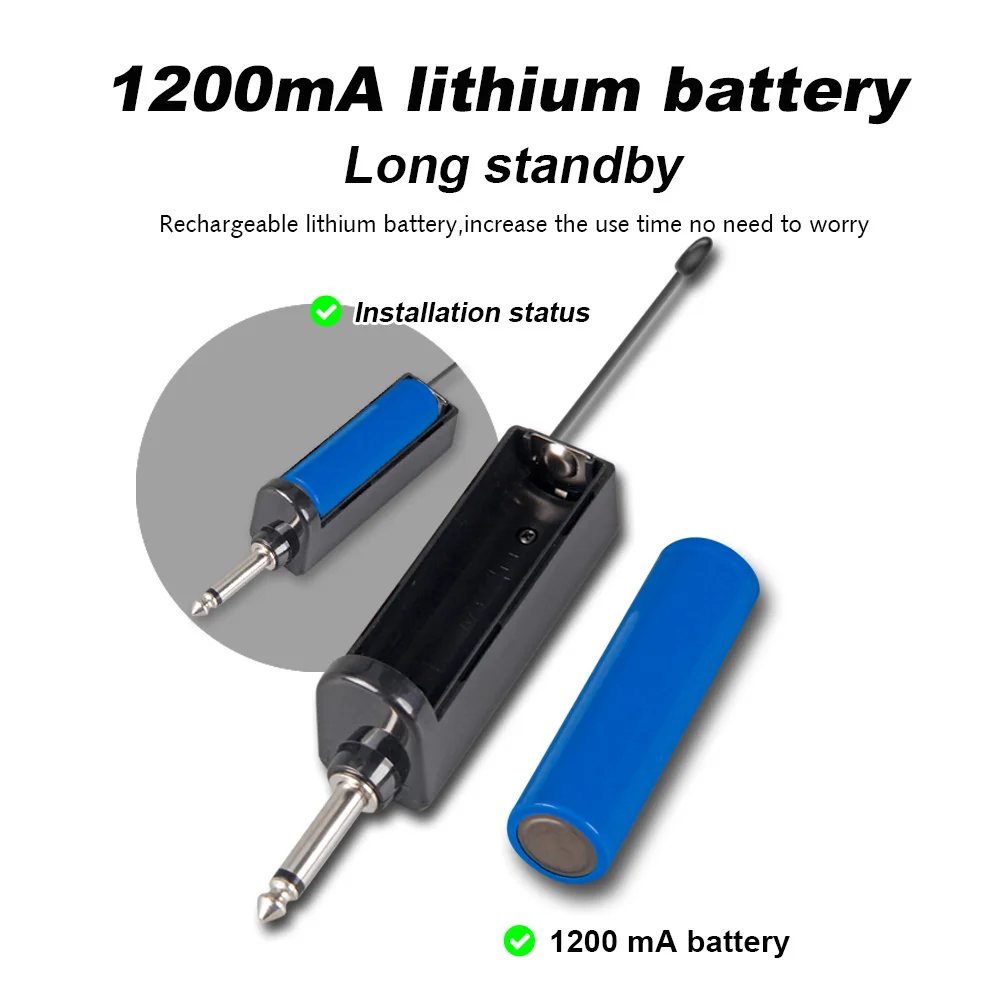

- Receiver Power Supply: 1200mA Lithium Battery (3.7V)
- Microphone Power Supply: 1200mA Lithium Battery (3.7V)
- Frequency Range: 520-580 MHz
- Adjustable Frequency: Yes
- Working Time: 5 Hours
- Chargeable: Yes
- Can Be Used At The Same Time: Yes

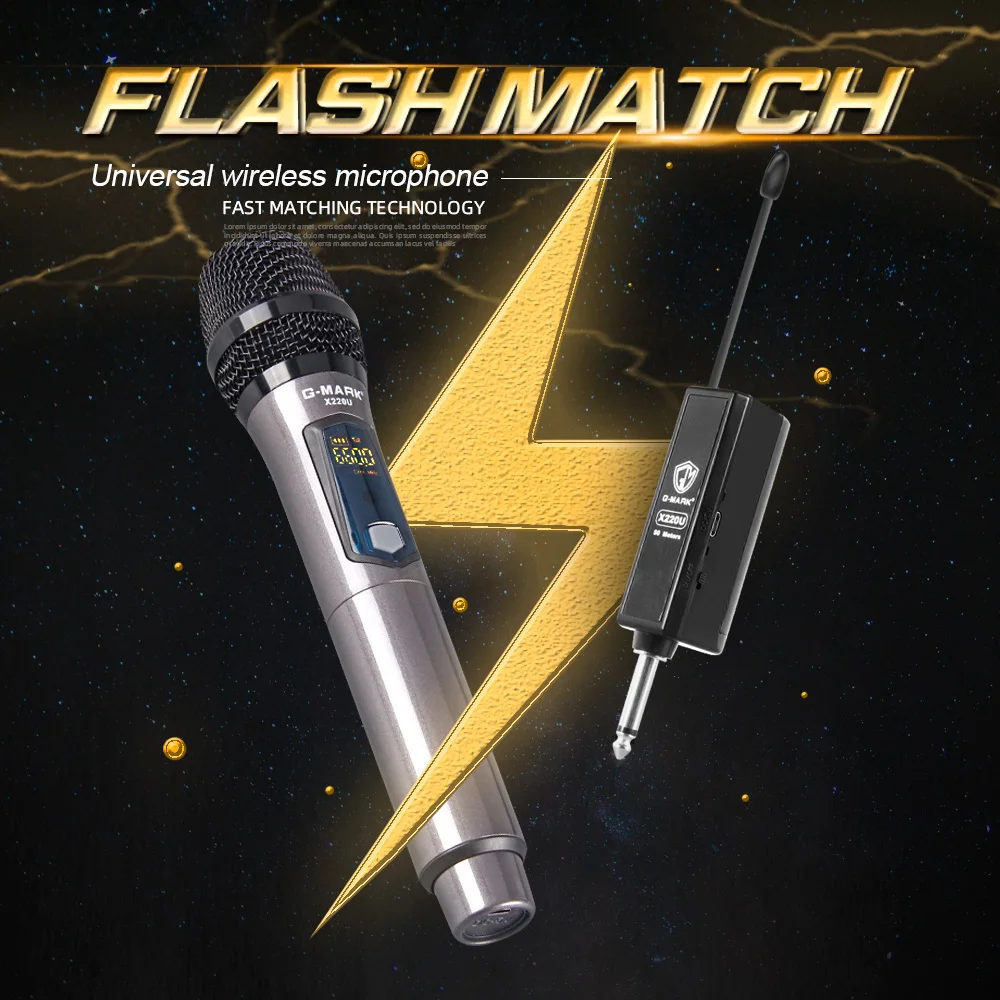

X220U wireless microphone
Carrier frequency band: UHF adjustable (520-580MHz)
Digital audio transmission technology
Unique digital ID code pilot technology, ID code 32bit, completely solve the same frequency crosstalk phenomenon.
Ultra low audio delay.
Audio sampling mode: 48KHz.
Frequency range: 50Hz – 18KHz.
Receive automatic scanning
Open environment theory transmission distance: 20-30 meters

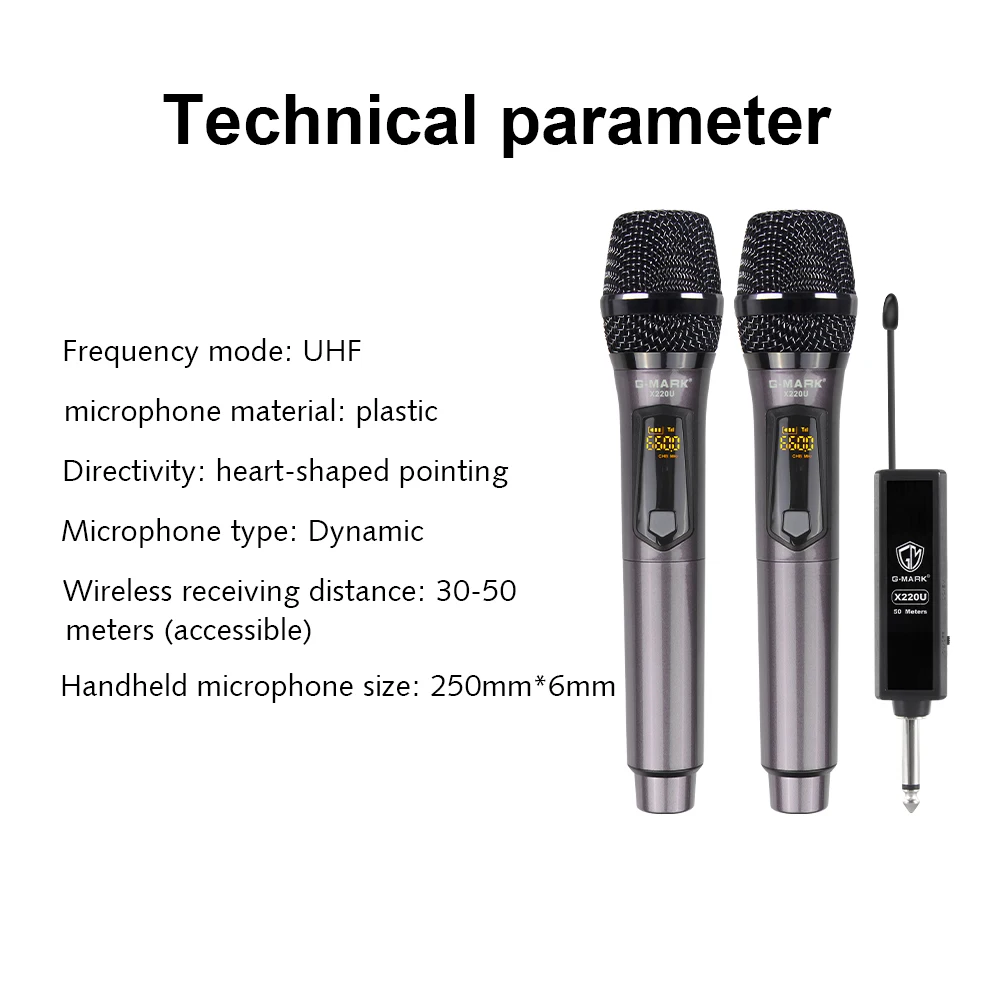

Microphone type

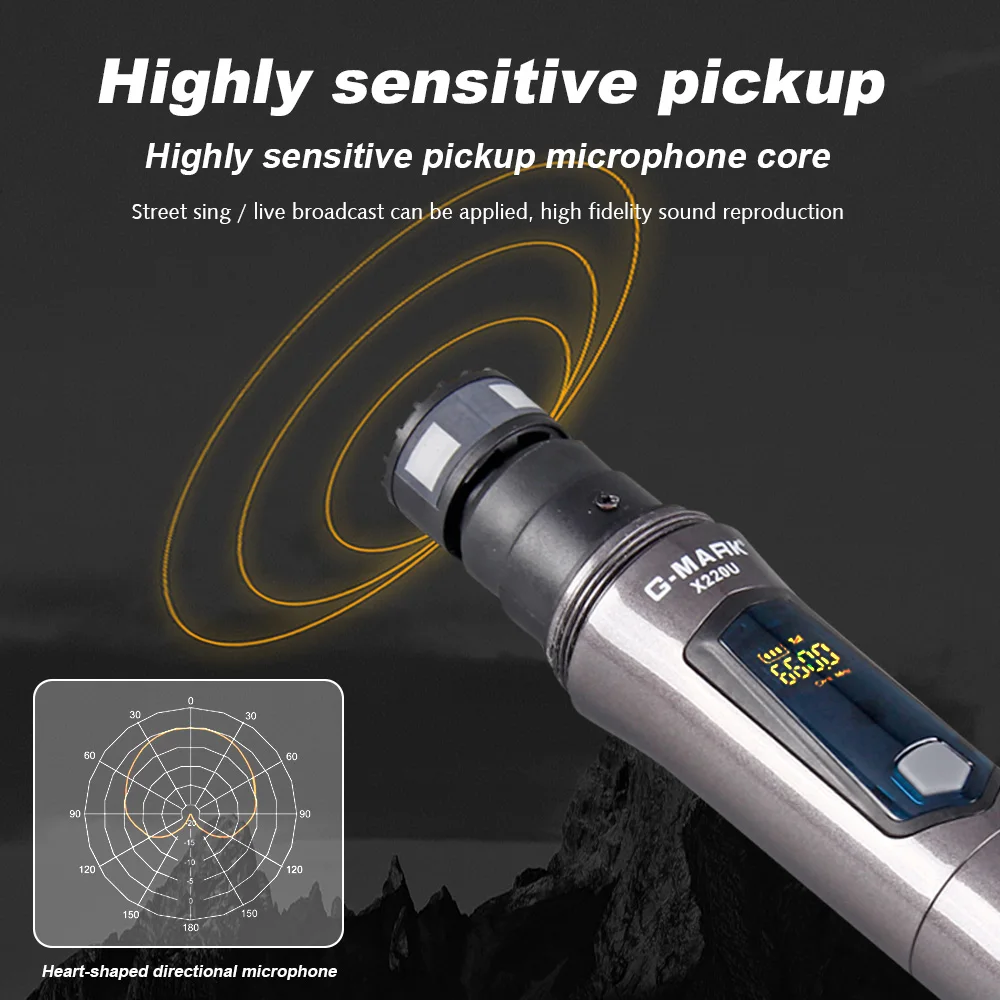

Picking up way heart pointing
Frequency range 520-580MHz
RF bandwidth 60MHz
Frequency points 8
Transmitting power 10mW
Frequency response 50Hz – 18KHz
Dynamic range 96dB
Harmonic radiation <-50dBc
Distortion <0.1%
Power supply mode One 1200mA lithium battery (3.7V)
Frequency range 520-580MHz
RF bandwidth 60MHz
8 frequency points
Signal to noise ratio 96dB
Receive sensitivity -95dBm

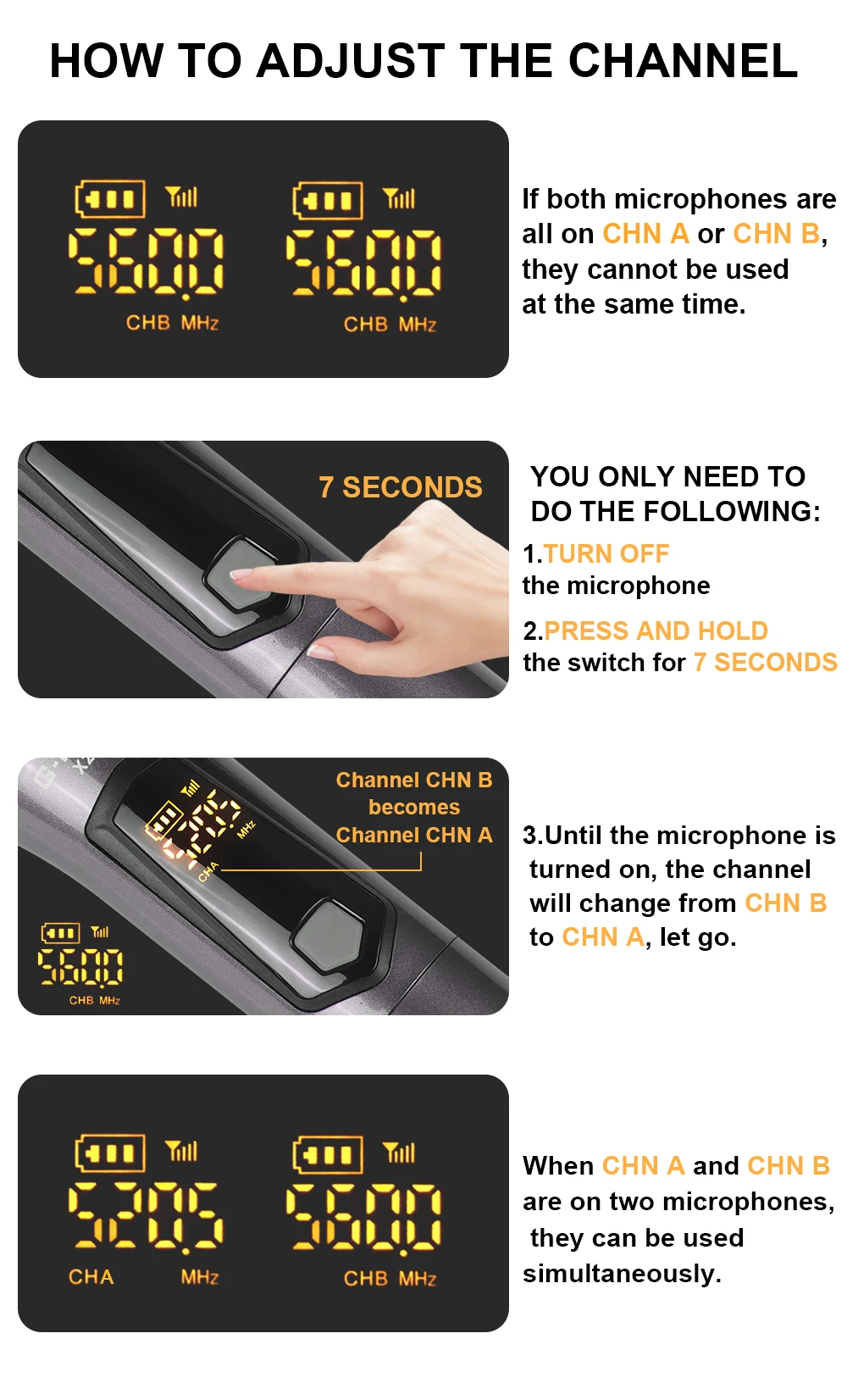

If there are multiple sets of products in the same environment, crosstalk may occur (same frequency with the same ID code)
Caused by the following steps, the pairing operation can be completely solved.
1. Adjust the transmission and reception to the shutdown state at the same time;
2. Transmitter: Press the power switch and the frequency hopping button simultaneously for about 4 seconds, the display will flash quickly.
status;
3. Receiver: Turn on the receiver power, the RF indicator flashes 4 times;
4. Transmitter: Short press the frequency hopping button to exit pairing.

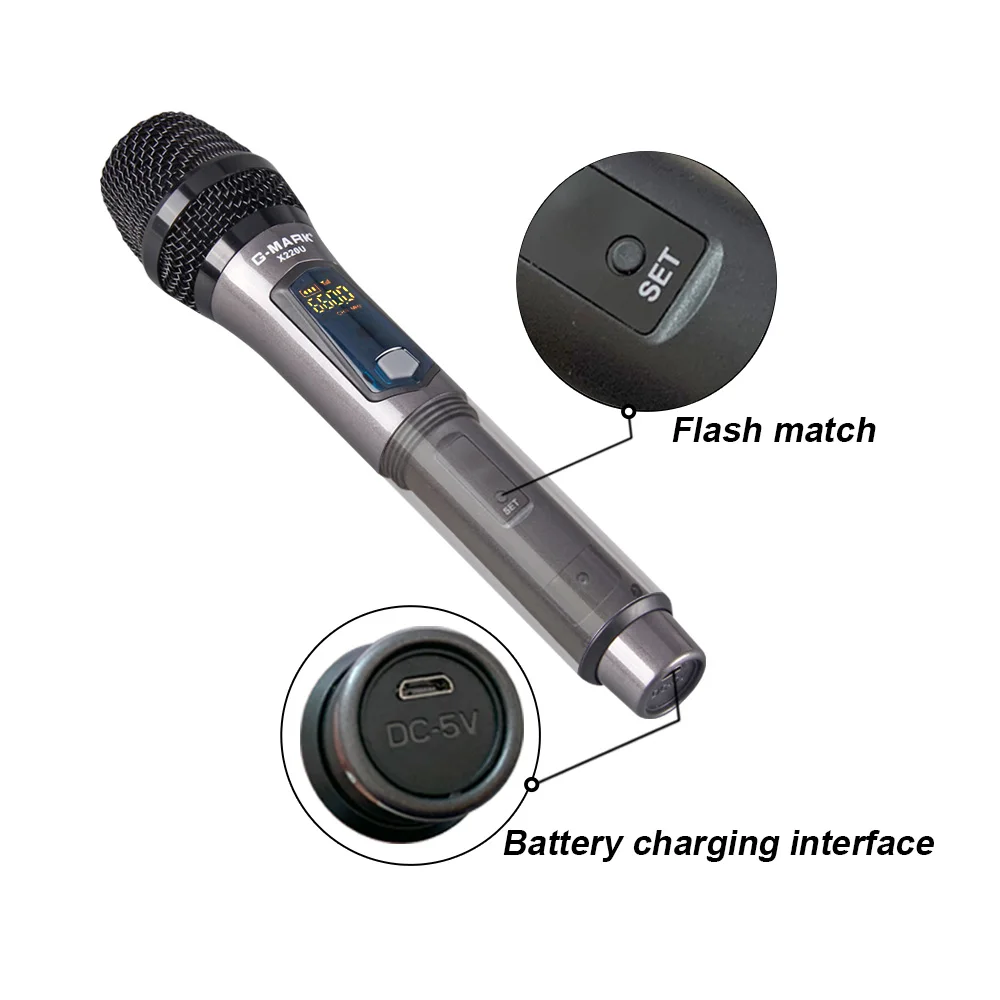

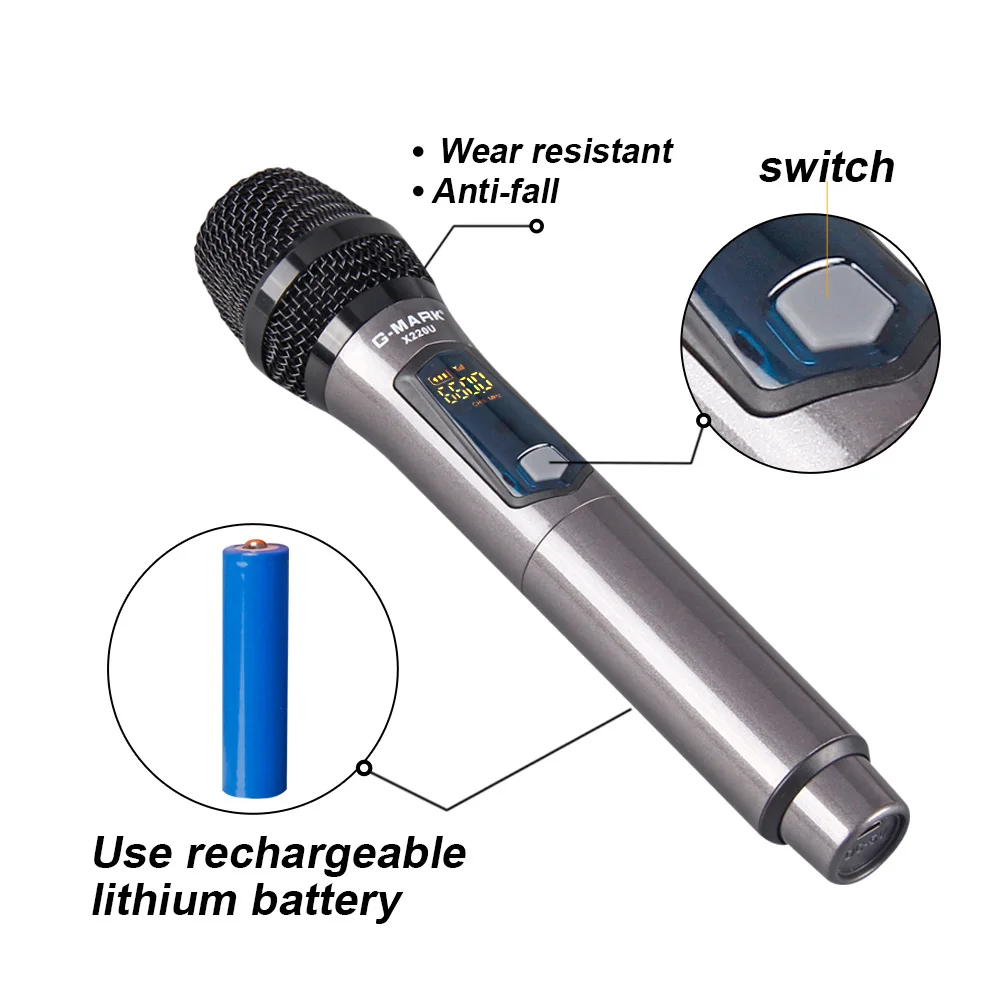

Power switch
2. Frequency hopping switch
Power switch
2. RF LED
Frequency response 50Hz – 18KHz
Distortion 0.05%
Dynamic range 96dB
Receive delay 2.5ms
Power supply mode 12000mA lithium battery (3.7V)
